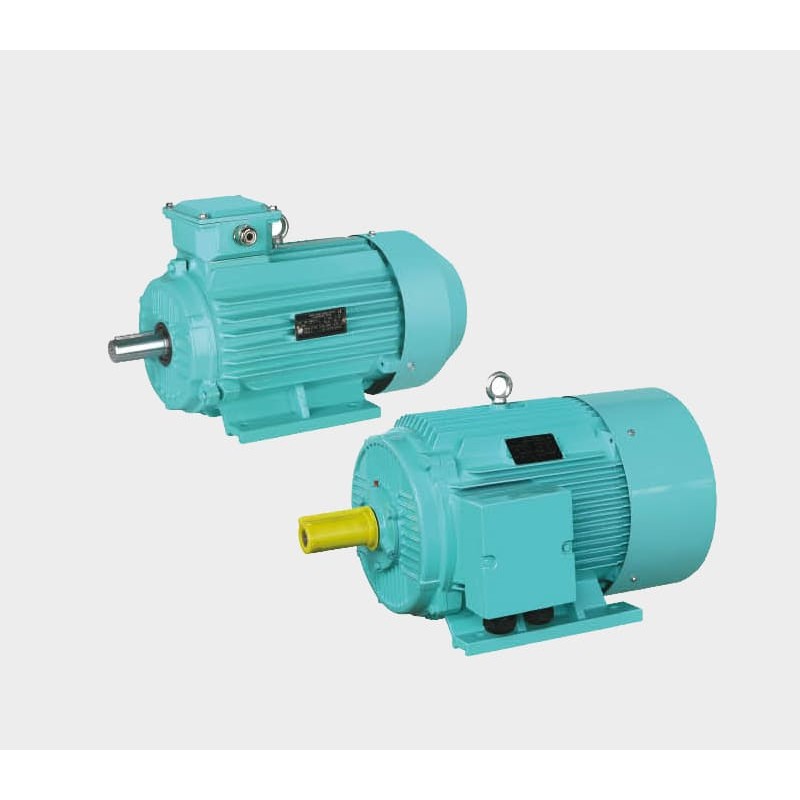

IE3 series high-efficiency three-phase asynchronous motor

IE3 series high-efficiency three-phase asynchronous motors have high efficiency, energy saving and environmental protection.

The new products concentrate the advanced technology and production experience of our company for many years in producing motors, and adopt new technology, new technology and new materials, so that the efficiency indexes of the motors fully meet the energy efficiency limit value of GB18613-2012 small and medium-sized three-phase asynchronous motor (i.e., level 2 energy efficiency).

It is characterized by novel design, beautiful shape, low noise, high efficiency, compact structure, easy to use and maintain. The motor adopts class F insulation, and the temperature rise of the whole series is assessed according to class B. This greatly improves the safety and reliability. This greatly improves the safety and reliability. The mounting dimensions of the motors are in accordance with the IEC standard, and the enclosure protection level is IP54 (IP55).

IE3 series motors can be widely used in machine tools, fans, pumps, compressors, packaging machinery, mining machinery, construction machinery and other types of mechanical transmission equipment.

Use conditions:

Ambient Temperature: -15℃≤0≤40℃

Altitude: not more than 1000m Rated

voltage: 380V, optional 220-760V any voltage value

Rated frequency: 50Hz, 60Hz

Protection grade: IP55

Insulation grade: F class, H class

Cooling mode: IC411

Working mode: S1 Connection: 3kw and below Y connection, 4kw and above △ connection
